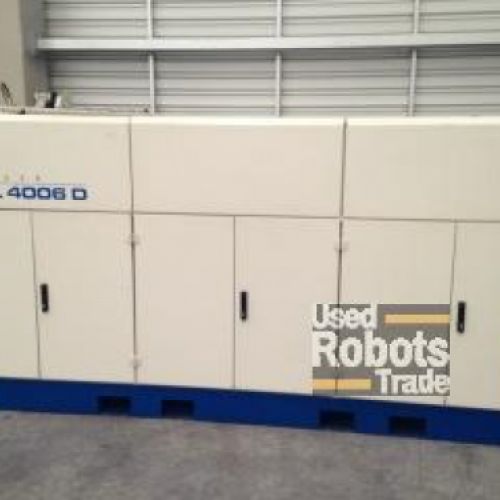

Trumpf Haas Laser Trumpf HL 4006D
Détails du robot
Year 2004. Nd:YAG solid state laser, 4000W power.
TRUMPF cw solid-state lasers have laser powers up to 5 kilowatts and a beam quality of better than 25 mm·mrad. The stated power is guaranteed at the workpiece under worst conditions. Flexible laser light cables carry the beam to the workstations up to 100 meters distance. Integration into manufacturing lines in conjunction with robots is fast and easy. With the cw lasers the welding of highly reflective materials like aluminum and copper is possible.
Laser light cable (micrometers): 600
6 cavities
The HL 4006D laser system consists of:

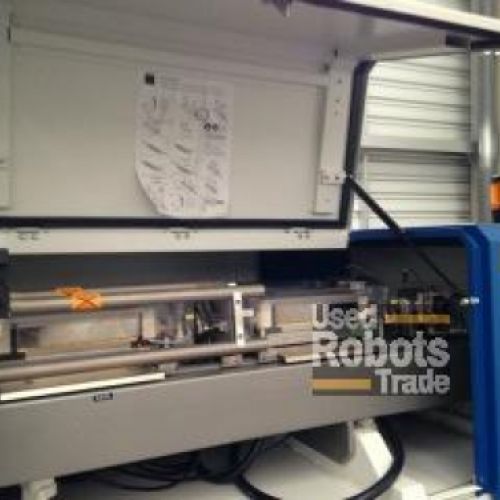

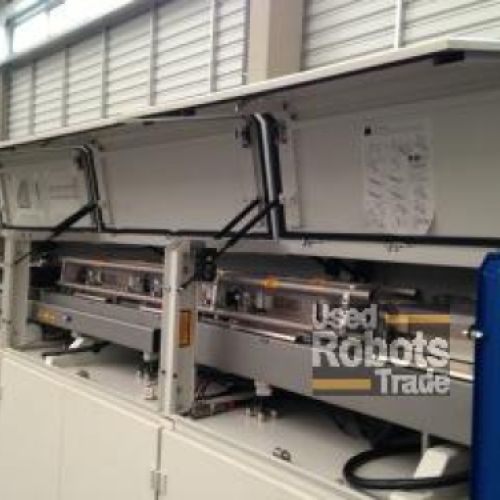

1) Laser and optic system HL 4006D

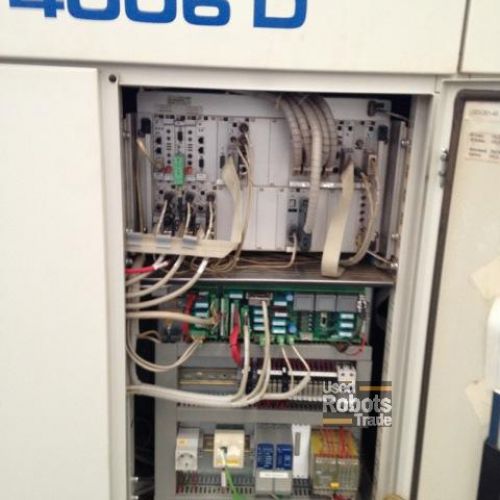

2) Control

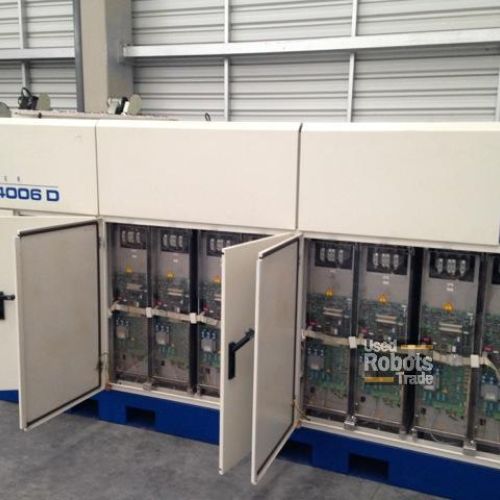

3) Power modules - external power connection
4) Lamps power input

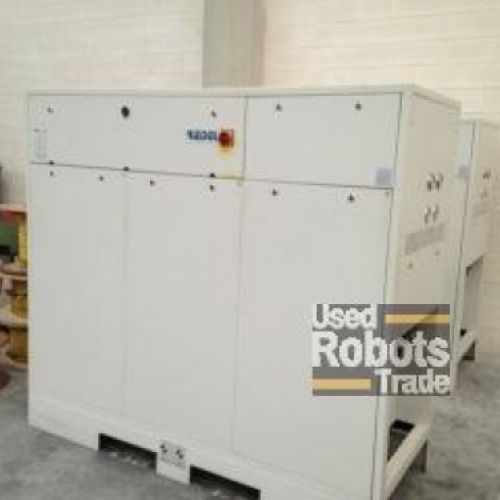

5) Regrigeration
6) Fiber optics
7) BEO machining optic systems - torchs (there is one torch for each application. Out torch is for 1 mm metal sheets welding)
You can always purchase the specific torch for your application; welding, cutting, seaming, metal surface treatment)
8) Computer with WINLAS software for controlling the parameters.
9) Control panel
Technical specifications:
Max. output power [W]: 5400
Nominal laser power [W]: 4000
Beam quality [mm.mrad]: 25
Laser light cable [micrometers]: 600
Nominal power consumption [KW]: 125
Electrical connection: 315 A
Nominal power consumption at 15ºC inlet temperature: 15 m3/h
Cooling water temperature range in ºC: 22
Weight: 1500 kg
Dimensions W X H X D [mm]: 3200 x 1700 x 1250
Ambient temperature: 10-40
Max. output power [W]: 5400
Nominal laser power [W]: 4000
Beam quality [mm.mrad]: 25
Laser light cable [micrometers]: 600
Nominal power consumption [KW]: 125
Electrical connection: 315 A
Nominal power consumption at 15ºC inlet temperature: 15 m3/h
Cooling water temperature range in ºC: 22
Weight: 1500 kg
Dimensions W X H X D [mm]: 3200 x 1700 x 1250
Ambient temperature: 10-40
